Shrink Fit Holders
Shrink fit tool holders provide maximum rigidity and precision for high-speed CNC machining. By using thermal expansion to secure cutting tools, these holders minimize runout and improve machining accuracy. Explore shrink fit holders designed for performance, stability, and consistent cutting results.
| Image | Product | Taper | Dual Contact | Bore Diameter Inch | Bore Diameter MM | Gauge Length Inch | Gauge Length MM | Coolant Thru | Brand | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bt 40 x sf 1/8″ – 6″ – 19019-6Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.125 Bore Diameter MM: 3.18 Gauge Length Inch: 6.000 Gauge Length MM: 152.40 Coolant Thru: Yes Brand: Techniks $324.00 |
||||||||||||
Bt 40 x sf 10 – 135 – 19140-135Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.394 Bore Diameter MM: 10.00 Gauge Length Inch: 5.315 Gauge Length MM: 135.00 Coolant Thru: Yes Brand: Techniks $88.20 |
||||||||||||
Bt 40 x sf 10 – 90 – 19140Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.394 Bore Diameter MM: 10.00 Gauge Length Inch: 3.543 Gauge Length MM: 90.00 Coolant Thru: Yes Brand: Techniks $256.00 |
||||||||||||
Bt 40 x sf 12 – 135 – 19142-135Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.472 Bore Diameter MM: 12.00 Gauge Length Inch: 5.315 Gauge Length MM: 135.00 Coolant Thru: Yes Brand: Techniks $88.20 |
||||||||||||
Bt 40 x sf 12 – 90 – 19142Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.472 Bore Diameter MM: 12.00 Gauge Length Inch: 3.543 Gauge Length MM: 90.00 Coolant Thru: Yes Brand: Techniks $256.00 |
||||||||||||

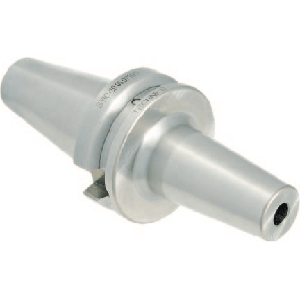

Bt 40 x sf 3/16″ – 6″ – 19020-6Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.188 Bore Diameter MM: 4.78 Gauge Length Inch: 6.000 Gauge Length MM: 152.40 Coolant Thru: Yes Brand: Techniks $324.00 |
||||||||||||
Bt 40 x sf 3/4″ – 6″ – 19032-6Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.750 Bore Diameter MM: 19.05 Gauge Length Inch: 6.000 Gauge Length MM: 152.40 Coolant Thru: Yes Brand: Techniks $324.00 |
||||||||||||
Bt 40 x sf 3/8″ – 6″ – 19026-6Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.375 Bore Diameter MM: 9.53 Gauge Length Inch: 6.000 Gauge Length MM: 152.40 Coolant Thru: Yes Brand: Techniks $324.00 |
||||||||||||
Bt 40 x sf 5/8″ – 6″ – 19030-6Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.625 Bore Diameter MM: 15.88 Gauge Length Inch: 6.000 Gauge Length MM: 152.40 Coolant Thru: Yes Brand: Techniks $324.00 |
||||||||||||
Bt 40 x sf 5/8″ – 90 – 19029Taper: BT40 Dual Contact: No Bore Diameter Inch: 0.375 Bore Diameter MM: 9.53 Gauge Length Inch: 3.540 Gauge Length MM: 89.92 Coolant Thru: Yes Brand: Techniks $324.00 |
